Equipment | Simco 5000

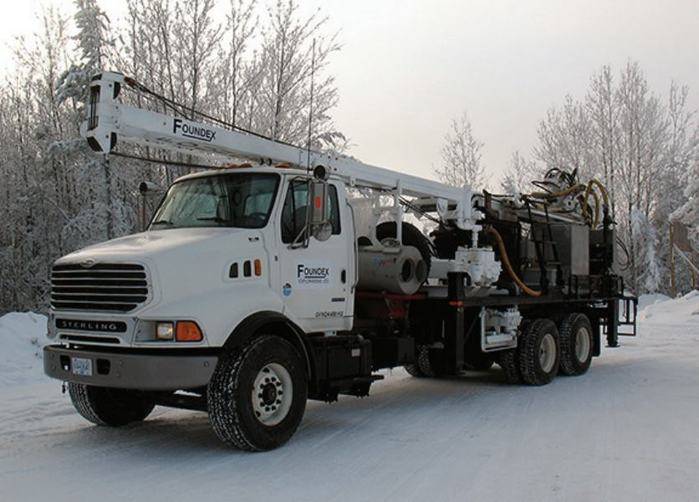

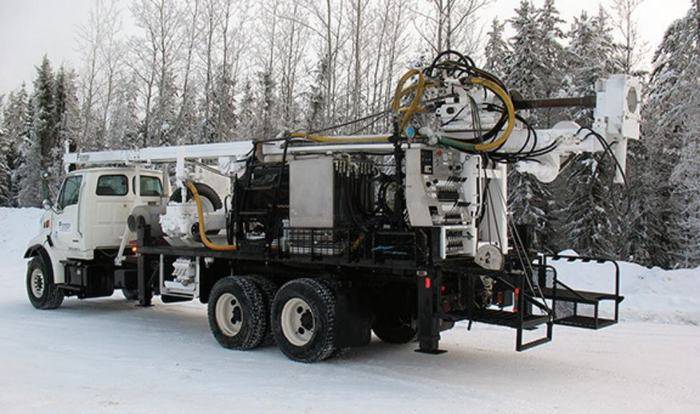

The Simco 5000 is one of our larger truck mounted top drive drill rigs. It can easily be equipped to meet almost any type of drilling project requirements. This drill has been custom modified from factory and has received upgrades in all areas to improve from its factory performance and meet our client’s special project demands.

The drill is equipped with all the necessary pumps and tooling to perform all types of rotary drilling and can be fit with an auxiliary compressor to provide a full range of air drilling techniques as well.

This drill has been utilized in hundreds of Marine offshore programs and is easily adapted to marine vessels and has a heave compensated rotary head assembly to enable drilling performance in not so optimal sea conditions.


Equipment Brief

  • Mud Rotary, Air Rotary, Coring BQ to PQ and CP Coring

  • Odex, Symmetrix and Down Hole Hammer Drilling, Reverse Circulation Systems

  • Geotechnical Investigations, Insitu Testing, Disturbed and Undisturbed Soil Samples, Overburden Coring

  • Heave Compensated Offshore Marine Geotechnical Drilling System (Also Used with our Wison Deep-water Offshore CPT/Sample System)

  • Casing Installation from 2” to 10”


Specifications

  • 4 Hydraulic Pump System Powered by a 165 HP Deutz

  • Diesel Engine

  • Head Torque - 0 to 12,000 ft./lbs.

  • Head RPM - 0 to 800 , 3 Speed Electronic Control

  • Head Travel - 22 feet

  • Pull Down / Pullback Pressure - 22,000 lbs.

  • Main Winch - 10,000 lbs

  • Secondary Winch - 8,000 lbs

  • Wireline Winches - 2 x 1500 lbs

  • Hydraulic Rod Clamp - Range 2” to 11”


Rig Capacity

  • HQ Core Depths to 3,000 feet

  • 8” Mud Rotary to 1,000 feet

  • 6” Odex / OVB Casing Systems to 300 feet

  • Hole Diameters—2” to 16”

Capacities contingent on ground conditions




























  • Hydraulic Breakout Wrench 2” to 6”

  • Head Hinge Off Hole - Free Rod Pull of 35 feet

  • 5 x 6 Gardner Denver Duplex Mud Pump - 200 gpm - 450 psi

  • W1122 Bean Triplex Coring Pump - 30 gpm - 1,000 psi

  • Hydraulic Pipe Spinner Attachment

  • Mast Raised Vertical - 45 feet High

  • Can be Easily Dismantled and Shipped in Sea

  • Containers for Ocean Freight to International Locations
