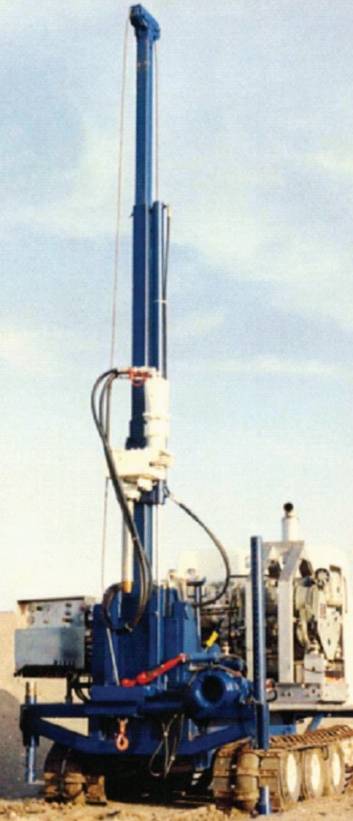

Equipment | HT 700

The HT 700 series drills were specifically designed and manufactured for use by Foundex, in order to meet our requirements for specialized drilling projects and accessibility to remote drilling sites. These compact, yet powerful drills are extremely versatile. The modular design permits the machine to be easily switched and mounted on skids, truck or tracked carriers. They are capable of drilling vertical, incline or horizontal holes.


Equipment Brief

  • Mud Rotary, Air Rotary, Wireline Coring BQ to PQ or Auger Drilling

  • Odex and Down Hole Hammer Drilling

  • Directional Drilling

  • Geotechnical Investigations and Sampling

  • Grouting, Anchors and Piling

  • Water Wells and Environmental Wells

  • Heliportable


​Specifications

  • 80 HP Air Cooled Deutz Diesel Engine or

  • Electric 575V 60 hp, 3 Phase

  • 2 Pump Hydraulic System

  • Head Torque - 0 to 5,500 ft./lbs

  • Head RPM - 0 to 800

  • Head Travel - 7 feet


Rig Capacity

  • HQ core depths to 500 feet

  • 6” Mud Rotary to 350 feet

  • 6” Overburden casing systems to 250 feel

  • Hole diameters 2” to 7”

Capacities are contingent on ground conditions




























  • Pull Down Pressure - 19,600 lbs

  • Pullback Pressure - 24,000 lbs

  • Main Winch - 5,000 lbs

  • Wireline Winch - 1,200 lbs

  • Mast Length - 24 feet

  • Hydraulic Rod Clamp - 1.5” to 8”
