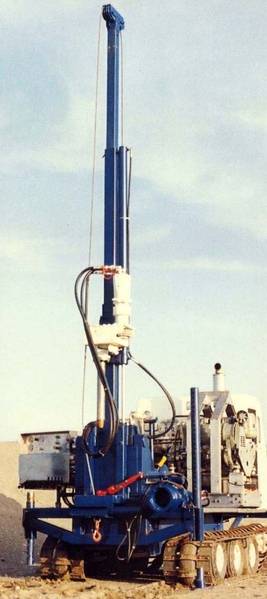

Equipment | HT 750

The HT series drills were specifically designed and manufactured for use by Foundex, in order to meet our requirements for specialized drilling equipment for more remote drilling sites.

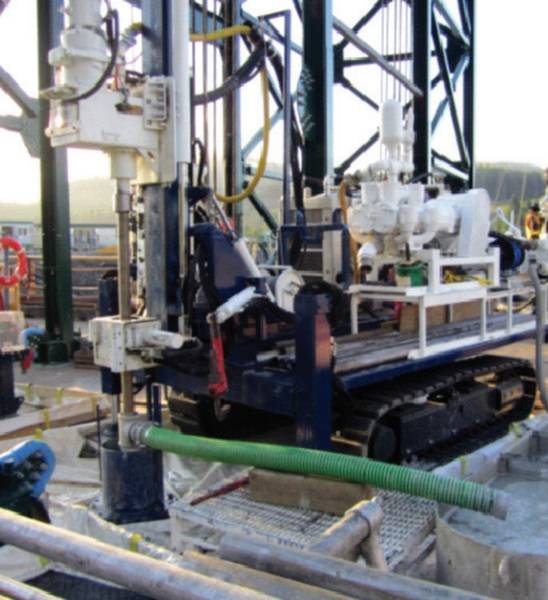

These compact, yet powerful drills are very versatile. They are of modular design, they can be broken down and installed on various platforms, be it skids, truck or tracked carriers. They are capable of drilling vertical, incline or horizontal holes.


Equipment Brief

  • ​Mud Rotary, Air Rotary, Coring or Auger Methods

  • Odex and Down Hole Hammer Drilling

  • Directional Drilling

  • Geotechnical Investigations

  • Geothermal Drilling

  • Grouting, Anchors and Piling

  • Water Wells and Environmental Wells

  • Offshore Marine Drilling

  • Mineral Exploration

  • Heliportable


Specifications

  • 80 HP Air Cooled Deutz Diesel Engine or

  • Electric 575V 60 hp, 3 Phase

  • 2 Pump Hydraulic System

  • Head Torque - 0 to 5,500 ft./lbs

  • Head RPM - 0 to 800

  • Head Travel - 7 feet

  • Pull Down Pressure - 19,600 lbs

  • Pullback Pressure - 24,000 lbs

  • Main Winch - 5,000 lbs

  • Wireline Winch - 1,200 lbs


Rig Capacity

  • HQ core depths to 500 feet

  • 6” Mud Rotary to 350 feet

  • 6” Overburden casing systems to 250 feet

  • Hole diameters 2” to 7”

  • Depth Capacity based on NQ Coring = 750 feet

  • Overburden Drilling with 6” Symmetrix = 250 feet

Capacities are contingent on ground conditions





























  • Mast Length - 12 to 24 feet

  • Hydraulic Rod Clamp - 1.5” to 8”

  • Hydraulic Breakout Wrench - 2” to 6”

  • Head Off Holes for Free Rod Tripping - 20 foot lengths

  • Duplex Mud Pump - 150 gpm at 300 psi

  • Triplex Coring Pump - 30 gpm at 1,000 psi

  • Hydraulic Mast Slide
