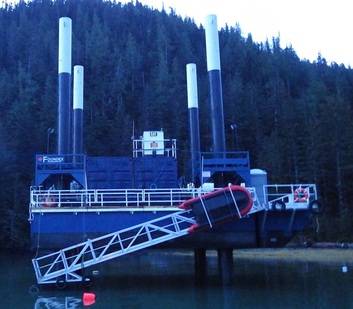

Equipment | Self Elevating Barge

Main Dimensions

Length



15.2 m / 50 ft

Width



12.2 m / 40 ft

Depth



2.1 m / 7 ft

Moon Pool



2.8 x 2.8 m / 9 x 9 ft

Area of Work Table



487 m² / 1600 ft²

Leg Length



18.3 m / 60 ft

Leg Diameter



0.76 m / 2.5 ft / 30
inch OD

Gross Tonnage



149 tonnes


Operating Condition

Wind Velocity



10 m/s.ec / 32.8 ft/sec

Maximum Height of
Wave



1 m / 3.28 ft

Current Velocity



1.5 Knots


Working Condition

Maximum Water Depth



10.7 m / 35 ft

Working Load (max)



90 tonnes


Power Pack - 6 Cylinder - 165 HP Diesel

Main Pump Engine



2 x 100 cc Press.
Comp. Pumps

Generator



12 KW welder /
generator


Hydraulic Lift System

Time for Lift Up



18 m/hr (60 ft/hr) x
2,000 RPM

Time for Lift Down



15 m/hr (50 ft/hr) x
2,000 RPM

Hydraulic Cylinders



200 mm ID / 1.3 meters
stroke

System Pressure



2500 PSI Operating
Pressure

Lift Capacity



375 tonnes @ 2,500
PSI
