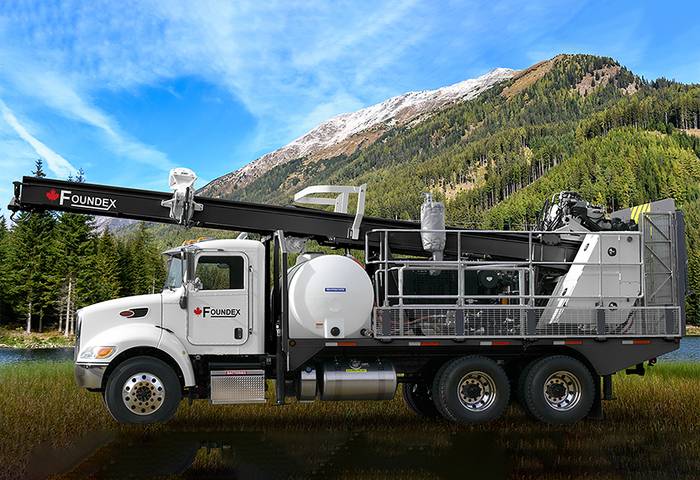

The TSI 150T features an exclusive Sonic oscillator using 150 HP to generate resonant sonic energy in the drill string. A
separate 250 HP deck engine is used to power all drilling and accessory hydraulic functions.
Rig Performance
-
Rated Drill Depth of 800 ft (244 m) with 6 in. (152 mm) Casing
-
Max Drilling Diameter of 12 in. (305 mm) Casing
-
Drill-Feed Rate of 0 to 135 fpm (0 to 41 m/min)
-
Pull-Back Force of 22,000 lbf (97.9 kN)
-
Down Force of 15,000 lbf (66.7 kN)
-
Max Casing Length of 20 ft (6 m)
Sonic Head
-
SONIC Head Model TSi 150
-
Oscillator Frequency of 0-150 Hz
-
Oscillator Force of 50,000 lbf (222 kN)
-
Max Torque of 4,677 ft-lb (6,341 N-m (high torque/low speed)
-
Rotation speed of 0 to 80 rpm (low speed/ high torque)
Breakout Specifications
-
Breakout Torque of 30,365 ft-lb (41,157 N-m) with Dual Cylinders
-
Wrench Size Range of 3 in. (76 mm) to 12 in. (305 mm)
-
Optional Casing Clamp with Integral Lock Valves in Clamping Cylinders
Water System
-
On-Board Water Tank Capacity of 725 gal (2,744 L)
-
FMC Bean Mud Pump (44 to 53 gpm) (166.56 to 200.63 Lpm
-
300-Gallon Detachable Water Tank (1,136 L)
-
Optional Progressive Cavity Grout Pump
|
|
Mast Specifications
-
Head Tilt of 87 Degrees
-
Head Travel of 24 ft 6 in. (7.5 m)
-
Drilling Angle Vertical to 45 Degrees
-
Upper and Lower Jib Hoist of 2,000 lbs (907 kg) capacity, 150 fpm (46 m/min) Bare Drum Speed
-
Wiggle of 6 in. (152 mm) Lateral Swing, 6 in. (152 mm) Fore/Aft
-
Rod Rack with 800 ft (244 m) of Vertical Mast Rod Storage
Engine Specifications
-
Engine is a John Deere Model 6.8L Intercooled, Turbocharged, Tier 3 with Stage IIIA Emission Certifcation Standards
-
Engine Power of 250 hp (186 kW) @ 2,400 rpm
-
Auxiliary Air Compressor of 13.2 CFM @ 120 psi (22.4 m)
-
Down force of 15,000 lbf
-
Auxiliary Air Compressor of 13.2 CFM @ 120 psi (22.4 m³ /hr @ 8.3 bar)
|
